Features
Certified by the Federal Agency for Technical Regulation and Metrology (Rosstandard, Russia)
Digital output
Fully temperature compensated
Accuracy ±0.3 hPa
Long-term stability ±0.2 hPa/year
Images

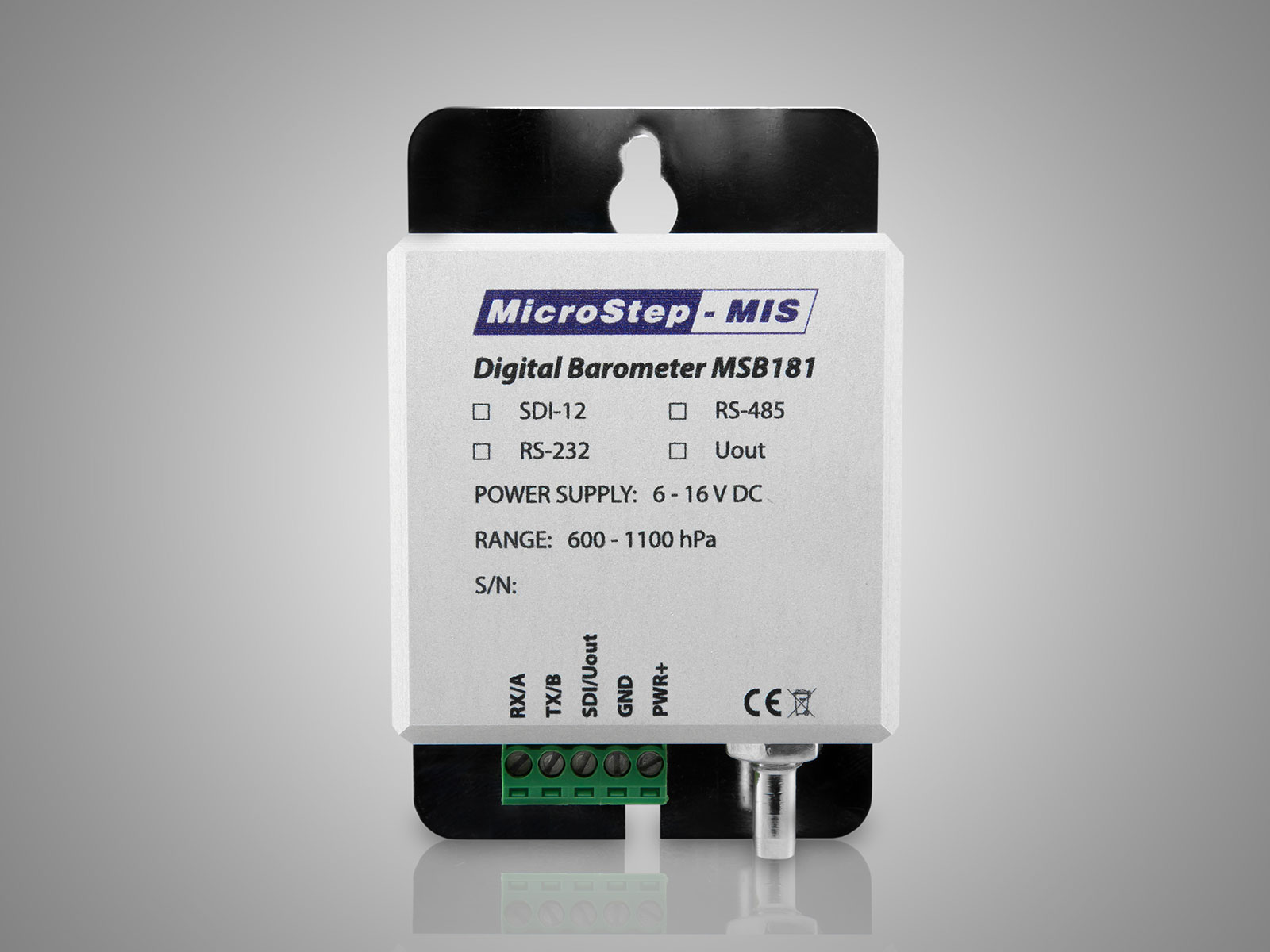

MicroStep-MIS | Front view of the Digital Barometer MSB181

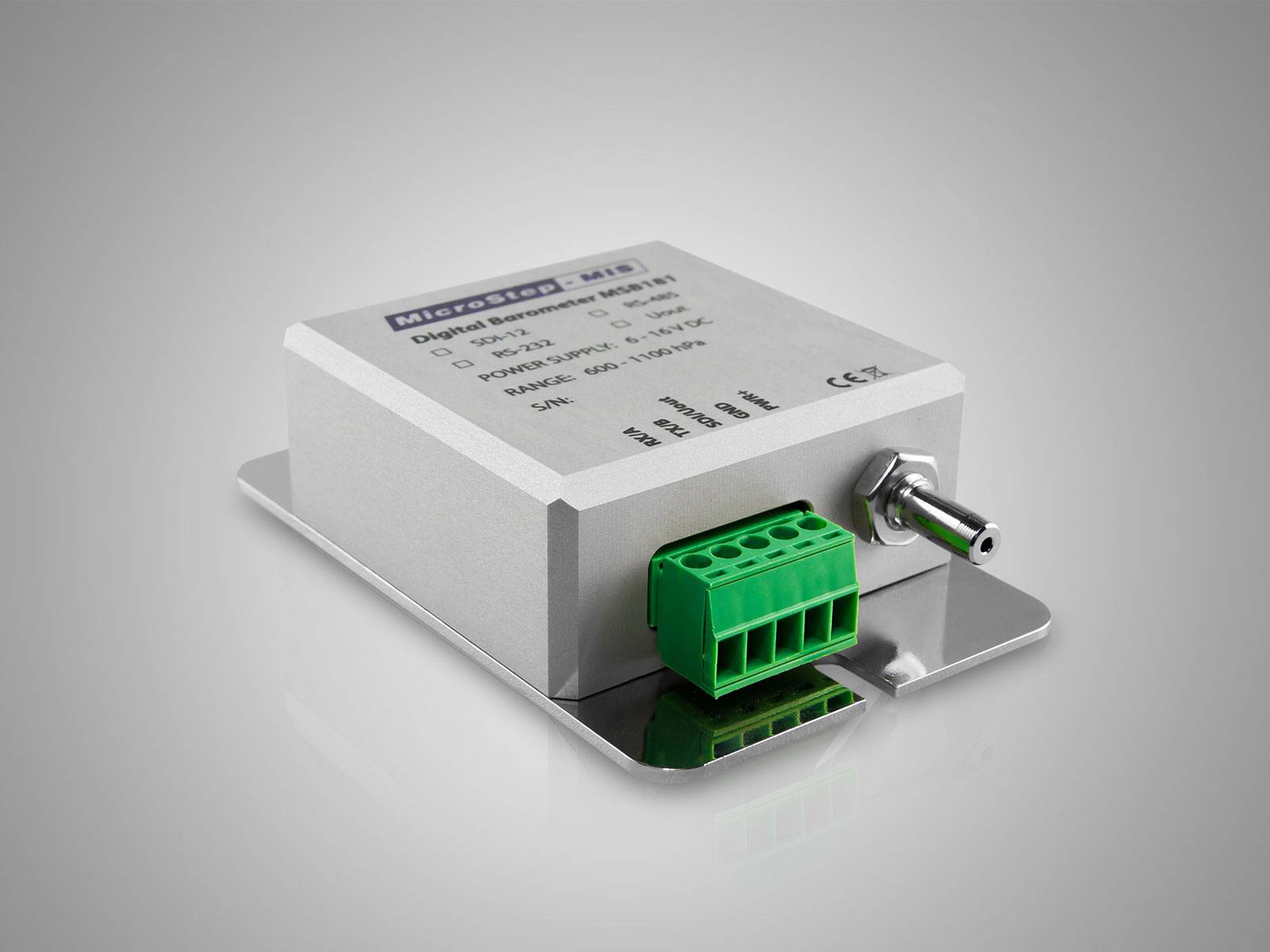

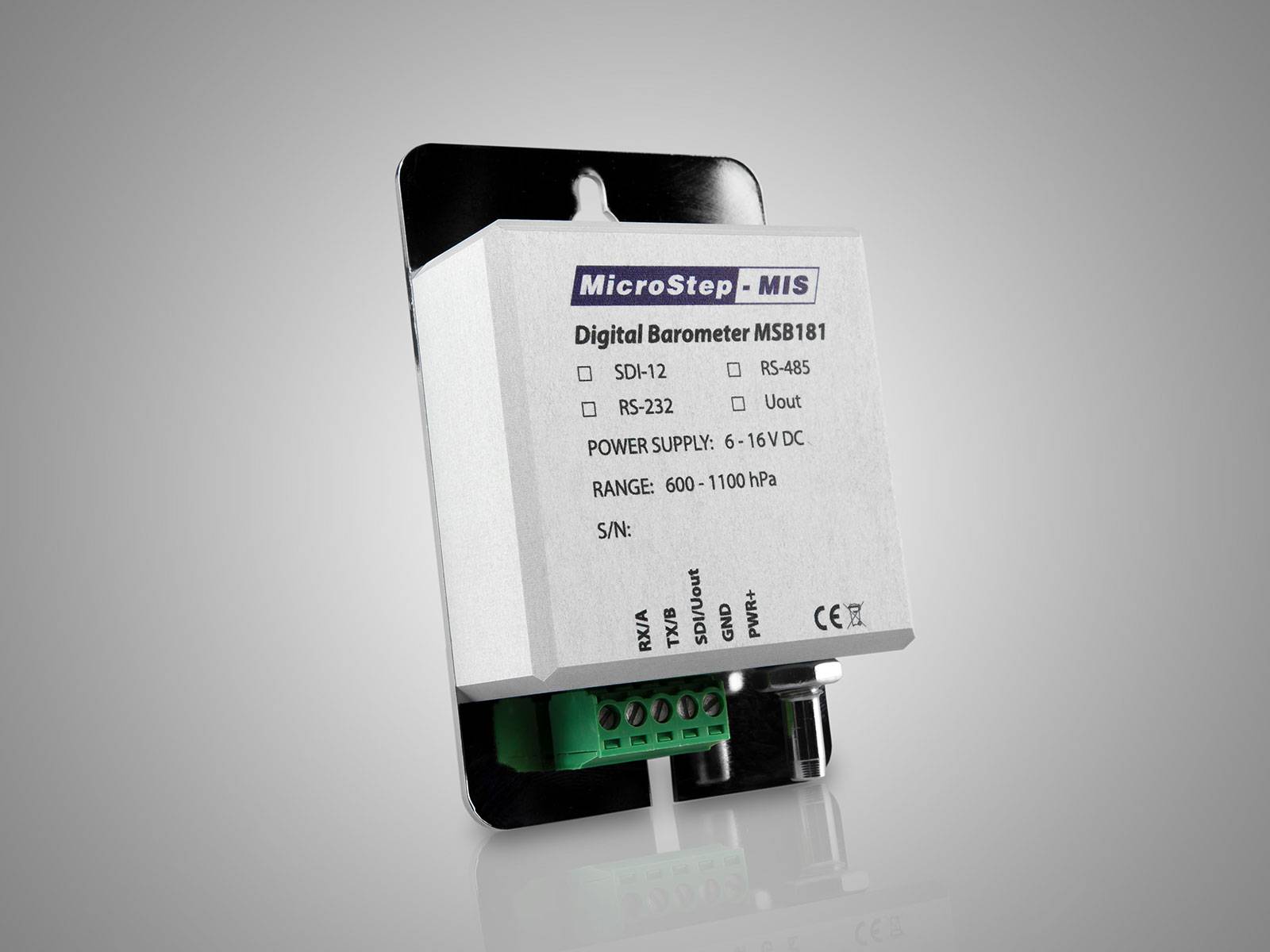

MicroStep-MIS | Angle view of MSB181 digital barometer
MicroStep-MIS | Angle view of MSB181 digital barometer

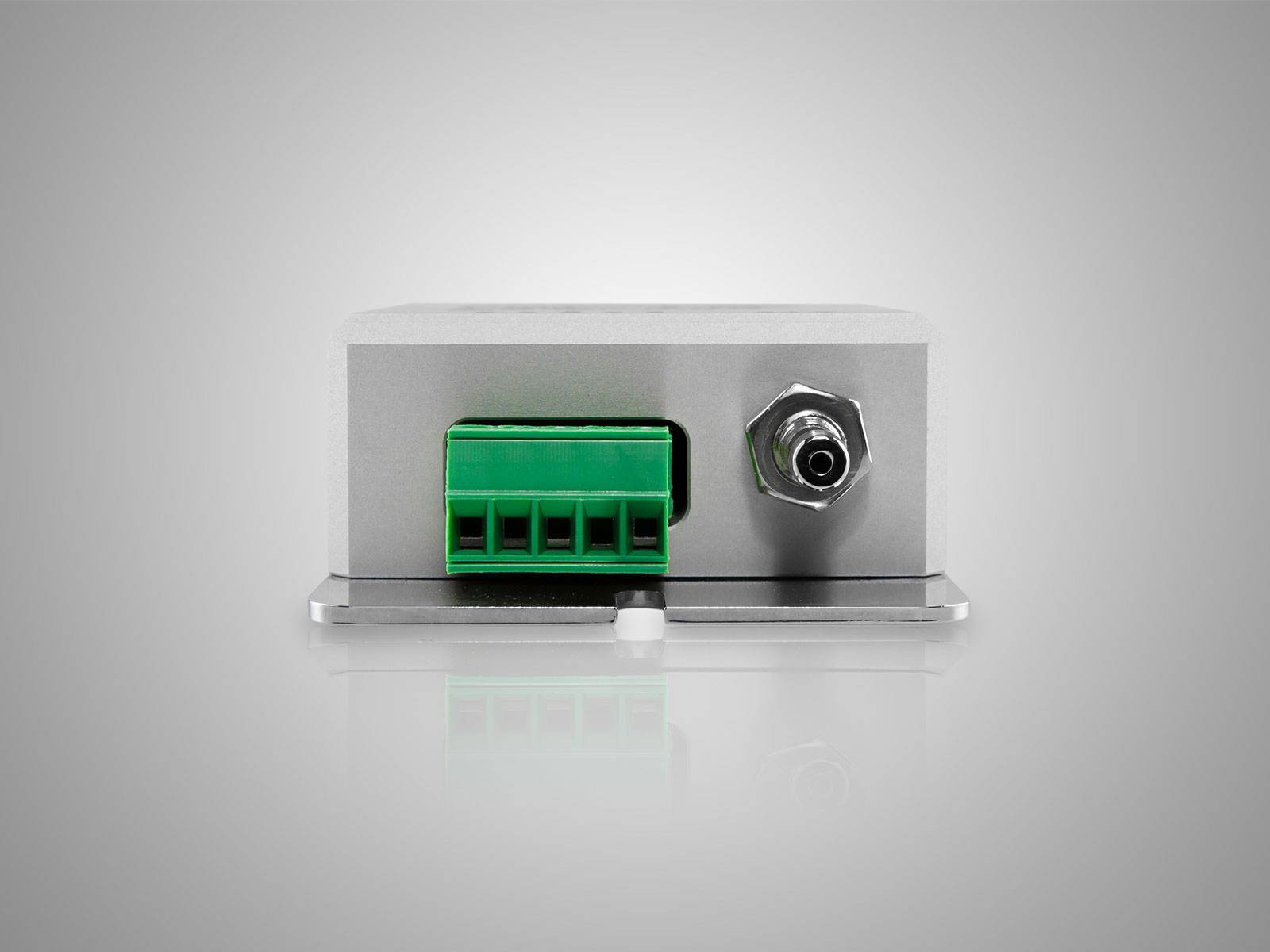

MicroStep-MIS | Bottom view of MSB181 digital barometer

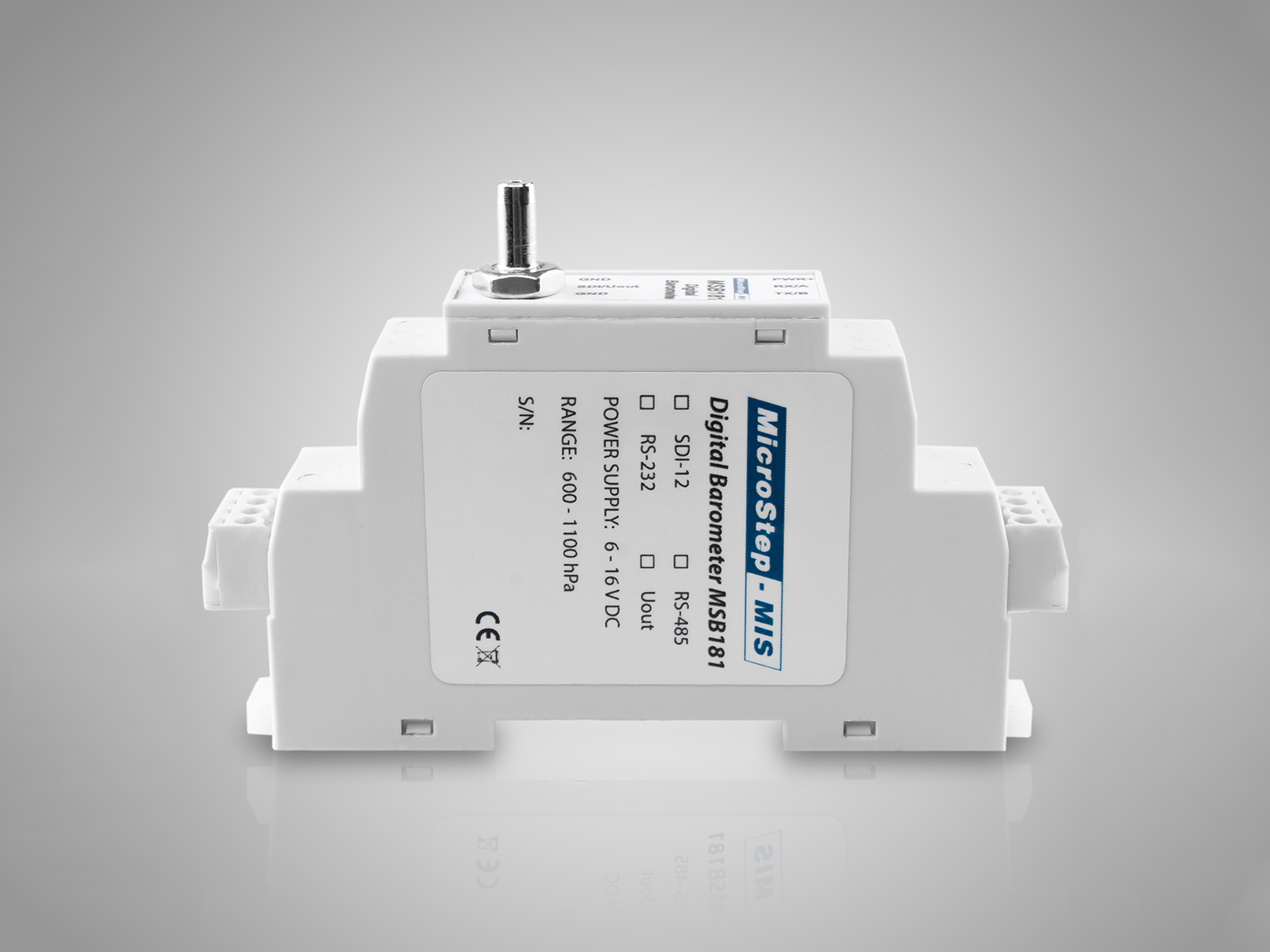

MicroStep-MIS | Front view of MSB181 DIN version

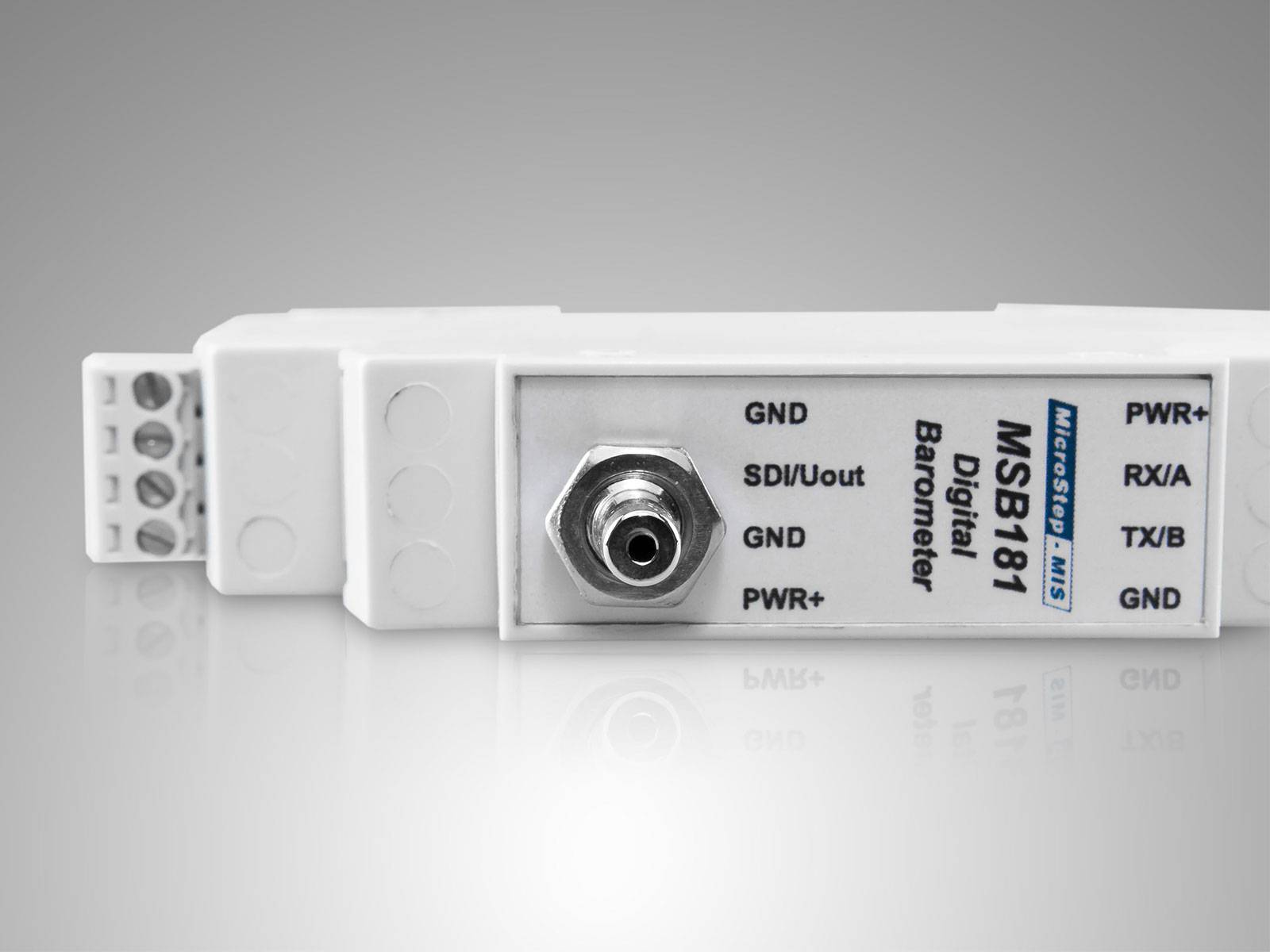

MicroStep-MIS | Detail of MSB181 DIN version

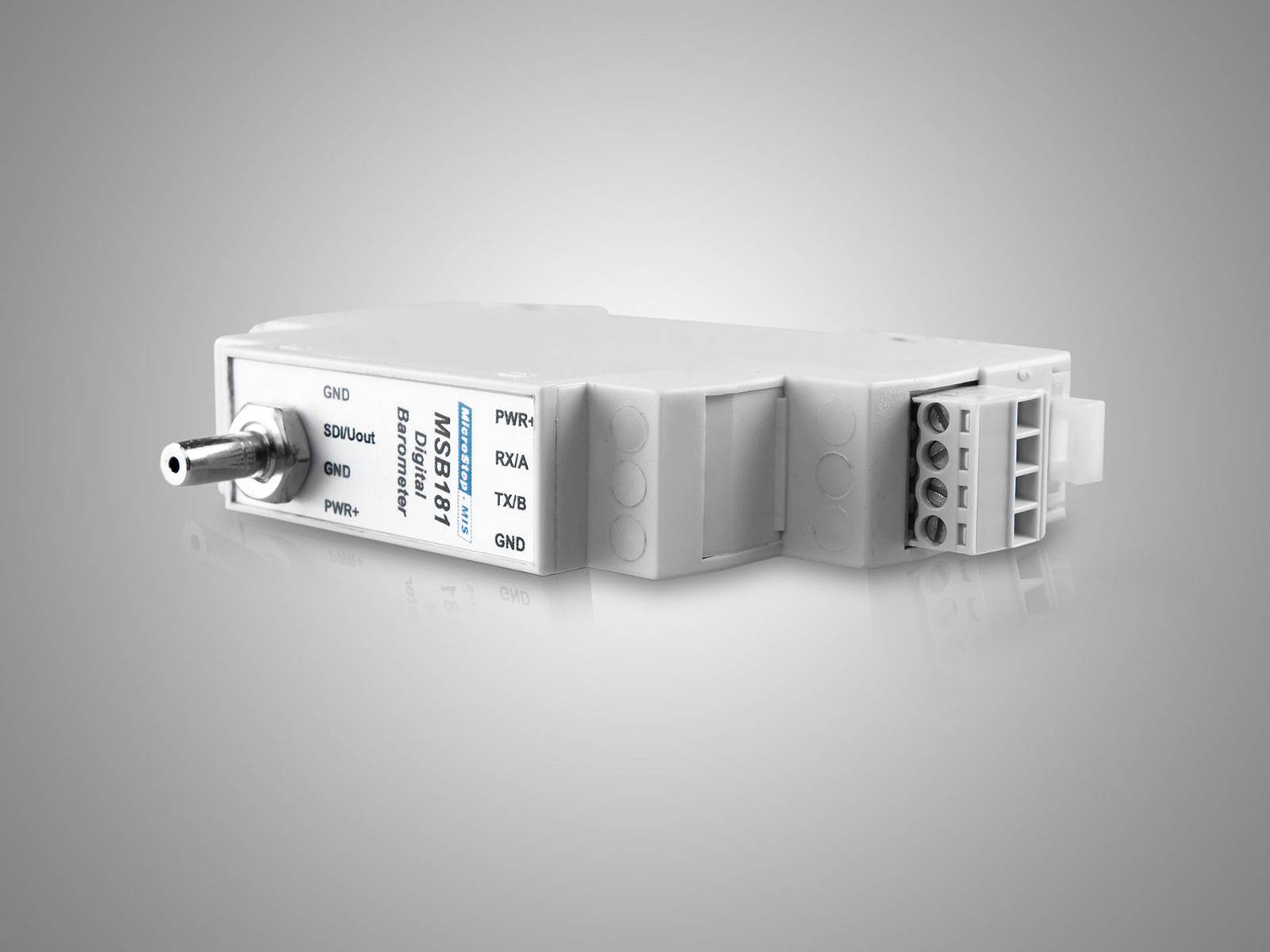

MicroStep-MIS | Angle view of MSB181 DIN version

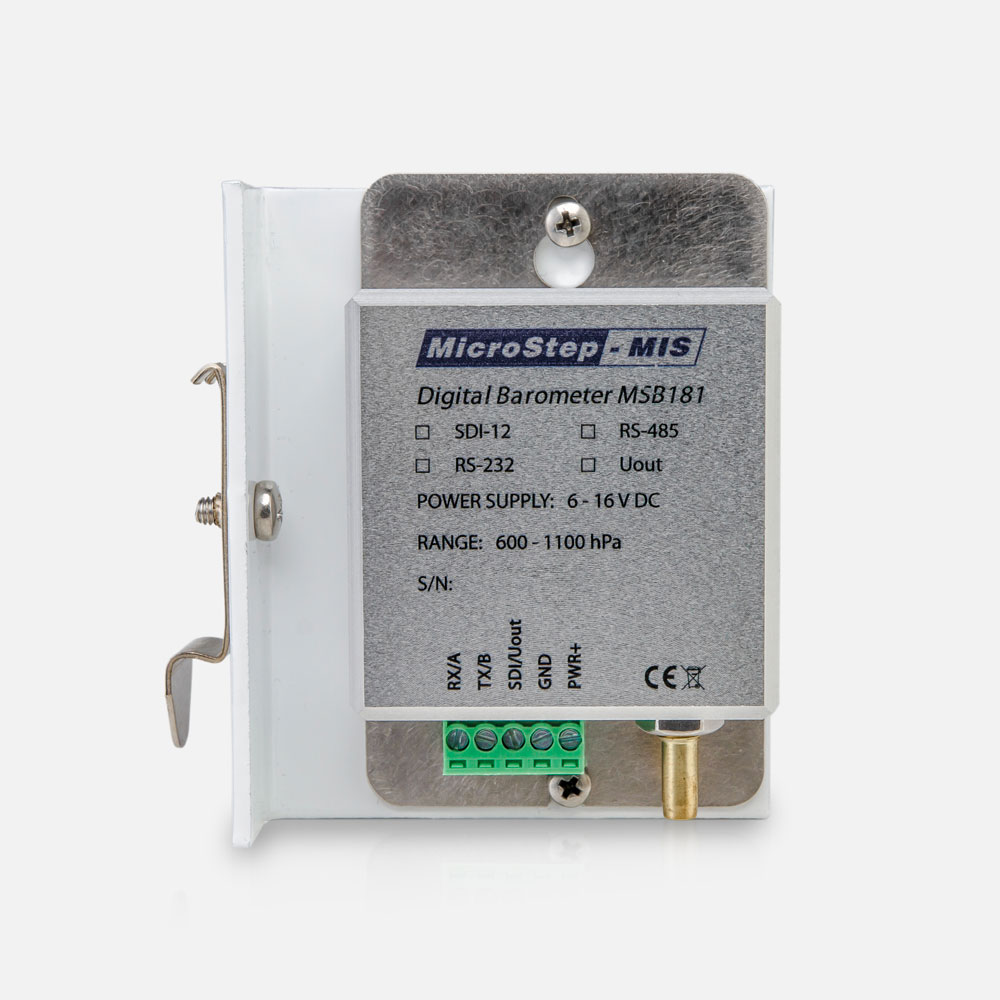

MicroStep-MIS | Digital Barometer MSB181

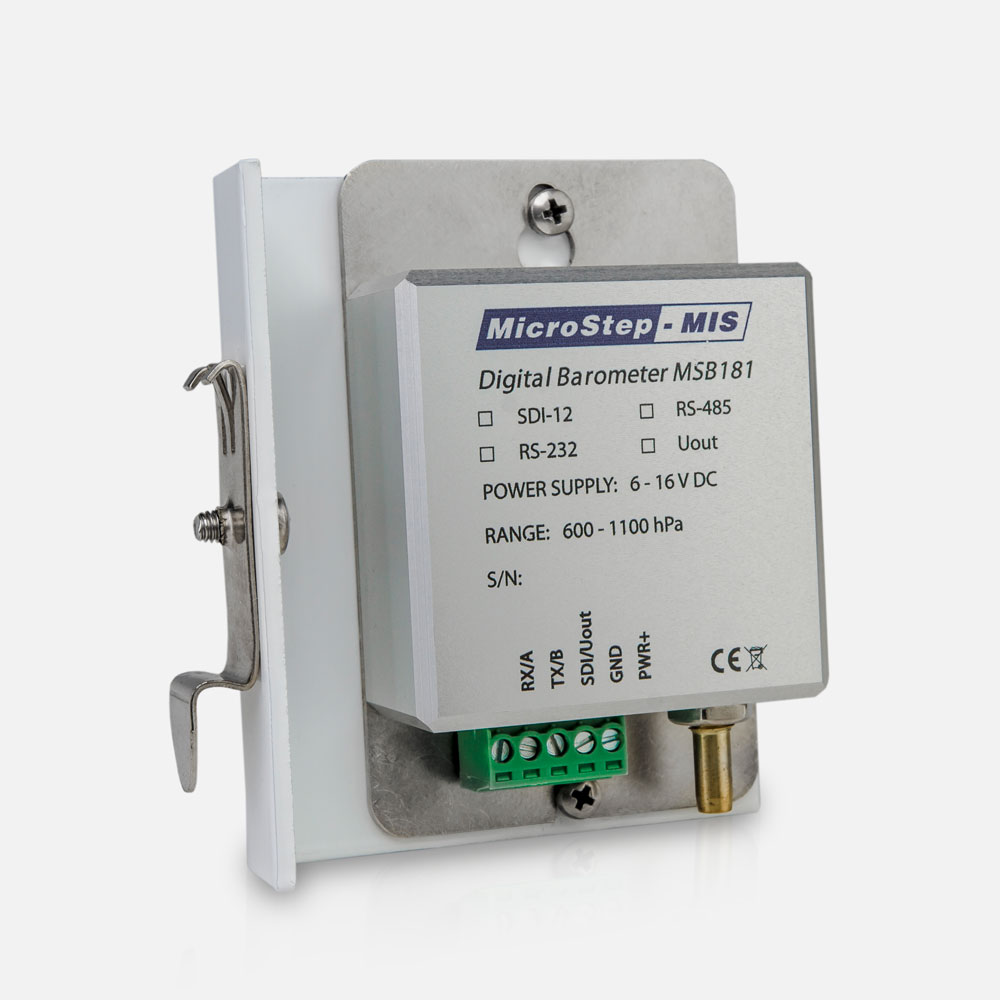

MicroStep-MIS | Digital Barometer MSB181

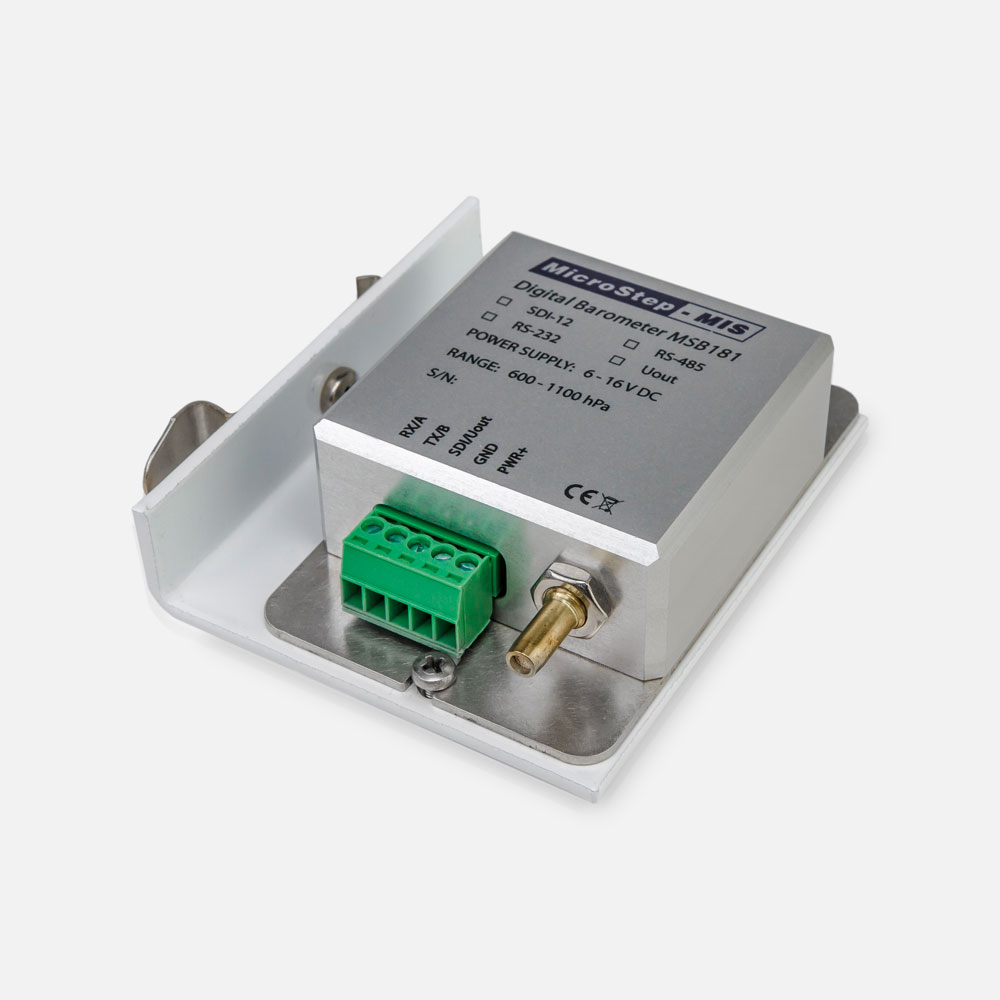

MicroStep-MIS | Digital Barometer MSB181
Heading
MSB181 | Digital Barometer
Section 1

Barometer MSB181, developed and manufactured by MicroStep-MIS, is designed for use in meteorological and agrometeorological applications requiring accurate measurement.

MSB181 can be ordered with one of the following output options: SSDI-12, RS-232, RS-485, or analog voltage ranging from 0 to 2.5 V. Supply current is less than 6 mA at 12 V. The version with SDI-12 features 50 μA sleep mode.

Time to first sample less than 1 s can be achieved with RS-485 and analog versions.
