Features
Standard level ranges 0 to 0.25 m up to 600 m
Alternative of producing and output signals
Integrated overvoltage protection
Interface RS-485 (Modbus), SDI-12
High reliability
Design according to customer’s specification
Extremely stable and accurate
Images
Heading

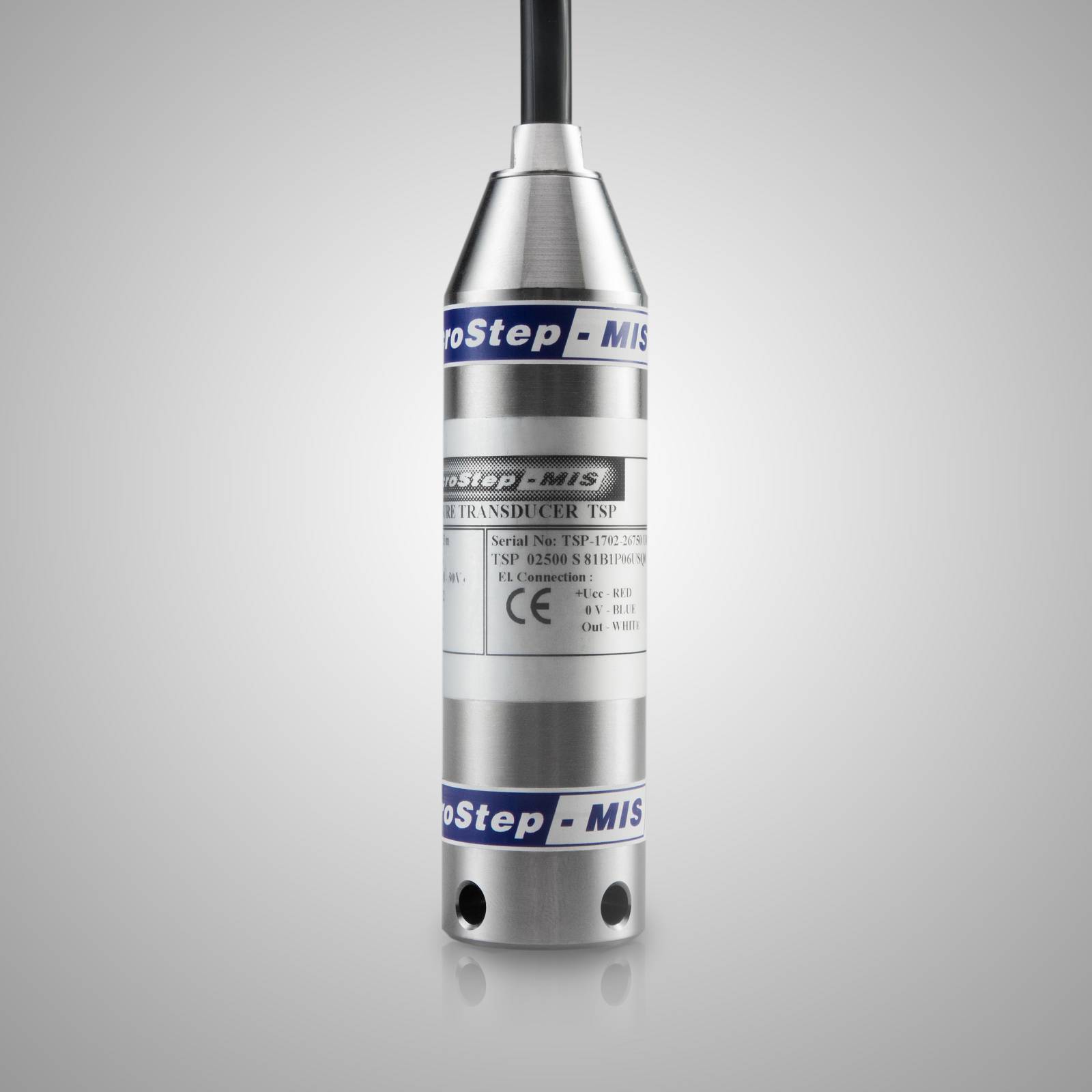

TSP | Water Level Sensor
Section 1
The TSP digitally compensated pressure transmitter combines advanced piezoresistive metal sensor and transmitter design.
Output signal of pressure sensor is gained, digitized and worked in CPU with 16 bit A/D converter, which enables better pressure transmitter linearity and temperature com- pensation. Output D/A converter is 12 bit.
Measuring principle - vented pressure probe automatically compensates for changes in atmospheric pressure. TSP is designed for level measurement in tanks, wells, bore- holes and watercourses.
