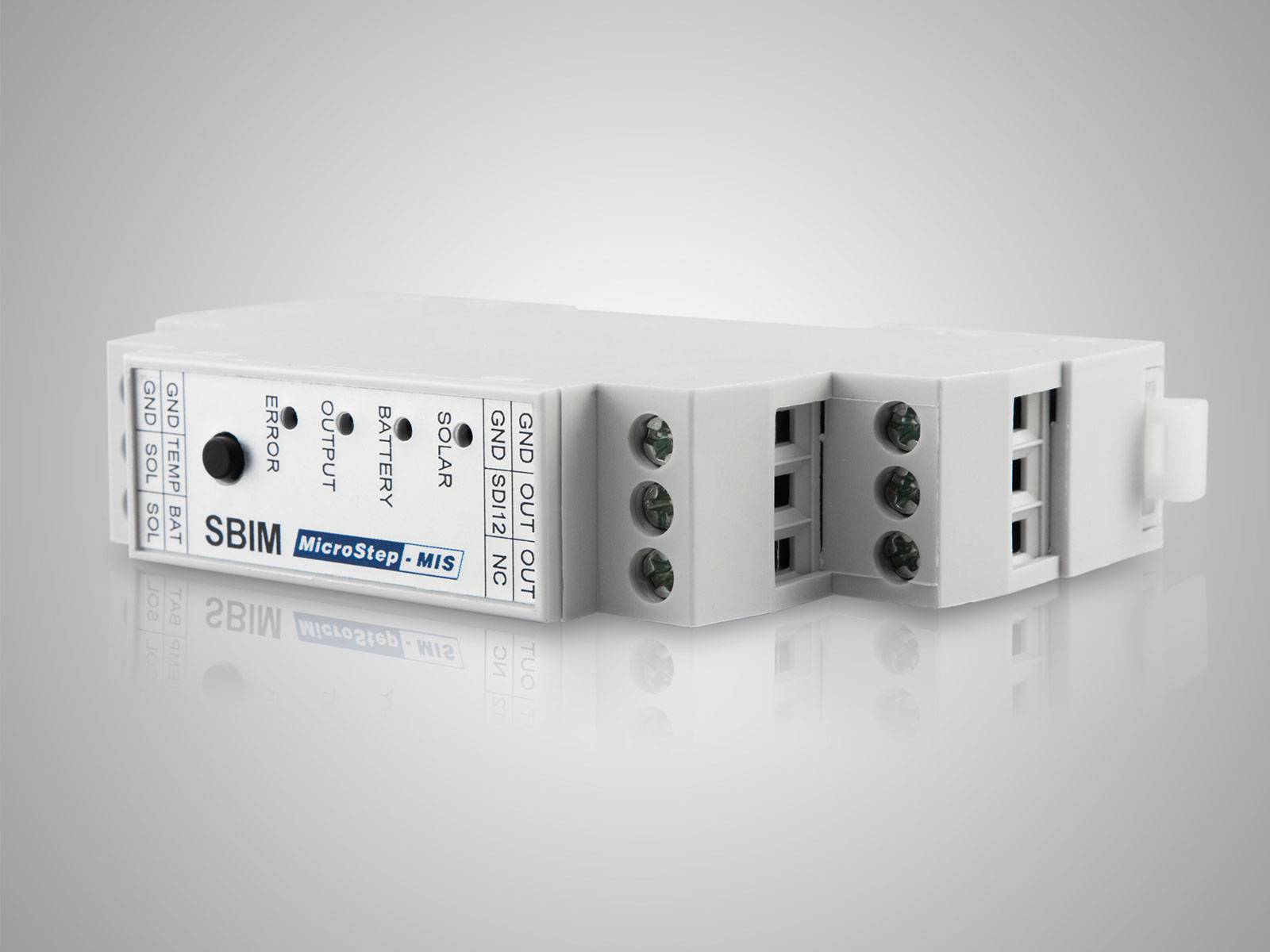

SBIM is a low-cost intelligent solar charger and power supply provider combined into one compact unit.
SBIM charges the 12 V or 24 V lead-acid batteries and provides power supply to the connected devices. Solar charger SBIM is suitable for majority of powering systems where battery backup is needed or precise information about power supply is required.

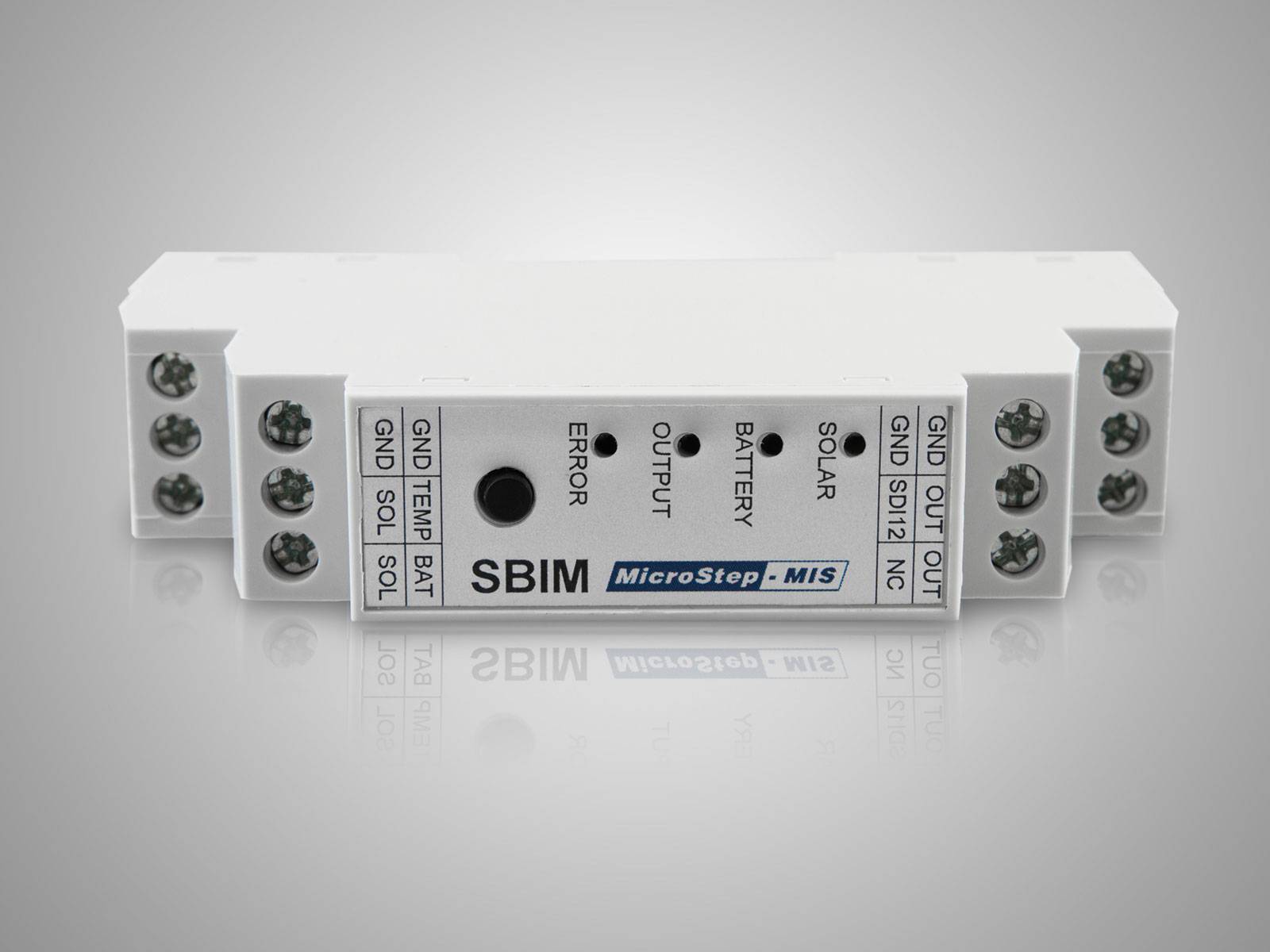

Charging control is performed by using powerful microcontroller and overall power consumption of charger is very low. The intelligent charger supports connection of external temperature sensor DS18S20 for measuring battery temperature. SBIM features SDI-12 interface for parameters configuration and data access. Actual status is shown by four status LEDs and interface button brings additional features as turning off output, showing status and other. Useful multifunctional input-output terminal enlarges possibilities of SBIM with extra safety functions. Solar charger SBIM also supports PV panel stealing detection which detects manipulation with panel even at night.

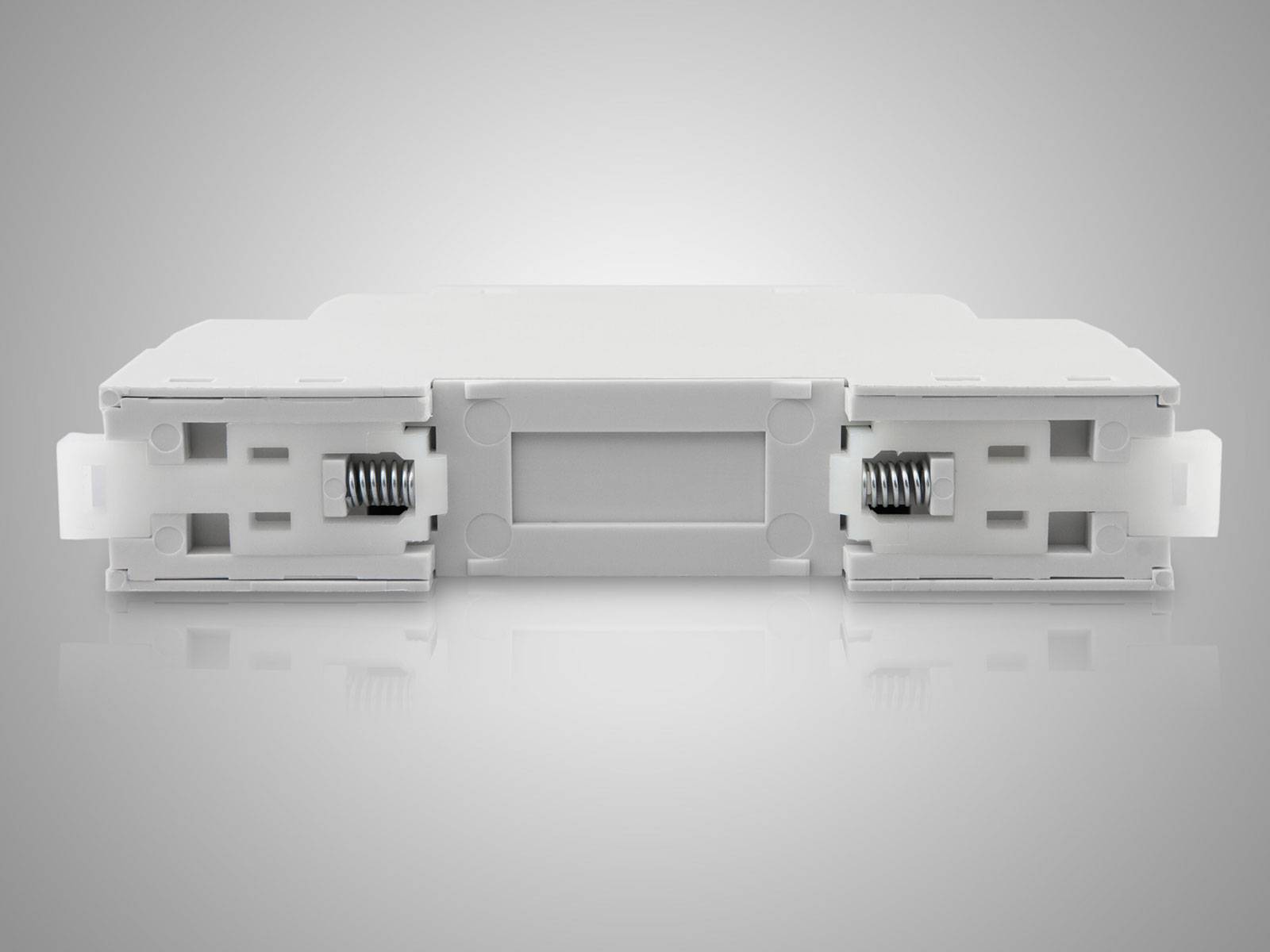

Solar charger SBIM is made of durable hardware components housed in enclosure which complies with DIN 43880, thus guaranteeing problem-free operation in all common distribution boards.
