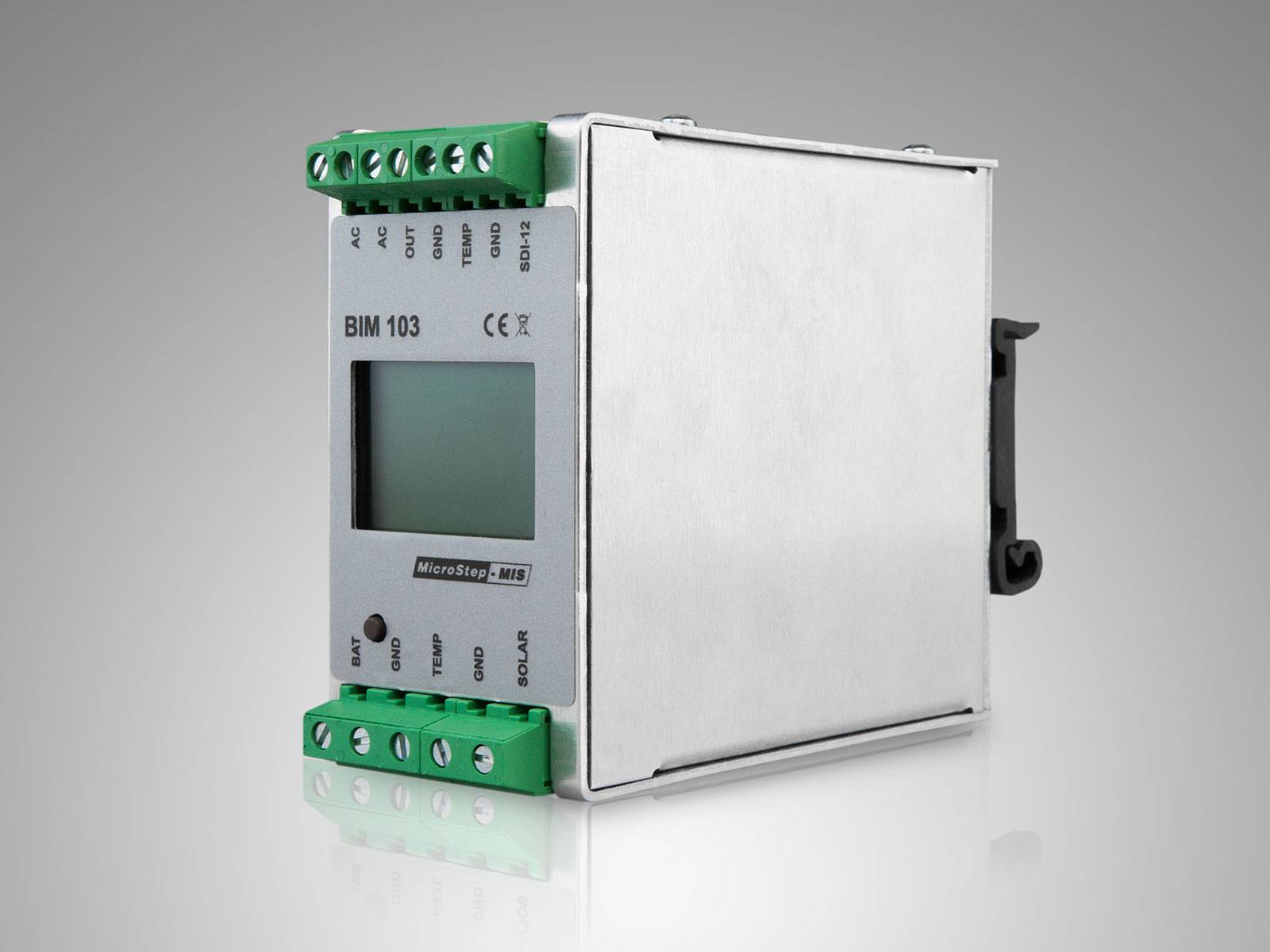

BIM103 is an intelligent solar charger and power supply provider combined into one compact unit.
BIM103 charges the lead-acid batteries and provides power supply to the connected devices either from attached external AC or DC power source, or from the lead-acid battery. Solar charger BIM103 is suitable for majority of powering systems where battery backup is needed or precise information about power supply is required.
Charging control is performed by using powerful microcontroller and overall power consumption of charger is very low. The intelligent charger supports connection of external temperature sensor DS18S20 for measuring battery temperature. BIM103 features SDI-12 interface for parameters configuration and data access. Solar charger BIM103 is a robust product made of durable hardware components housed in an aluminium enclosure.

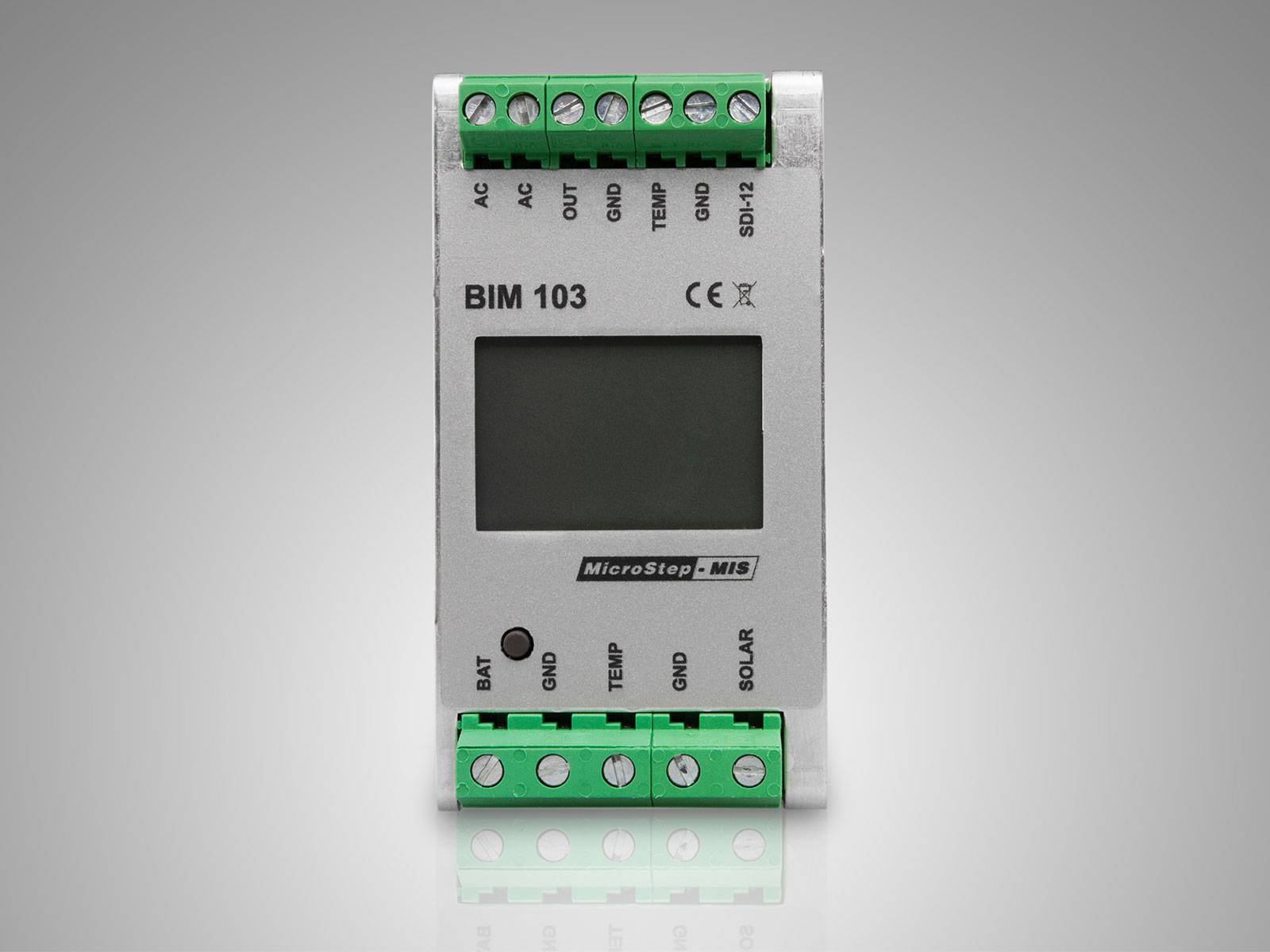

LCD Display
Operating modes and functions are switched automatically and simple menu system shows all necessary information about charging, connected power sources, status and warning messages. LCD display and button are also used for editing user settings using start-up menu.
