Features
Powers the sensors from USB, or external power supply
Two connectors for SDI-12 sensors
Virtual USB serial port
RS-232 port
Bus monitor function
Bus voltage analyzer function
Images
Heading

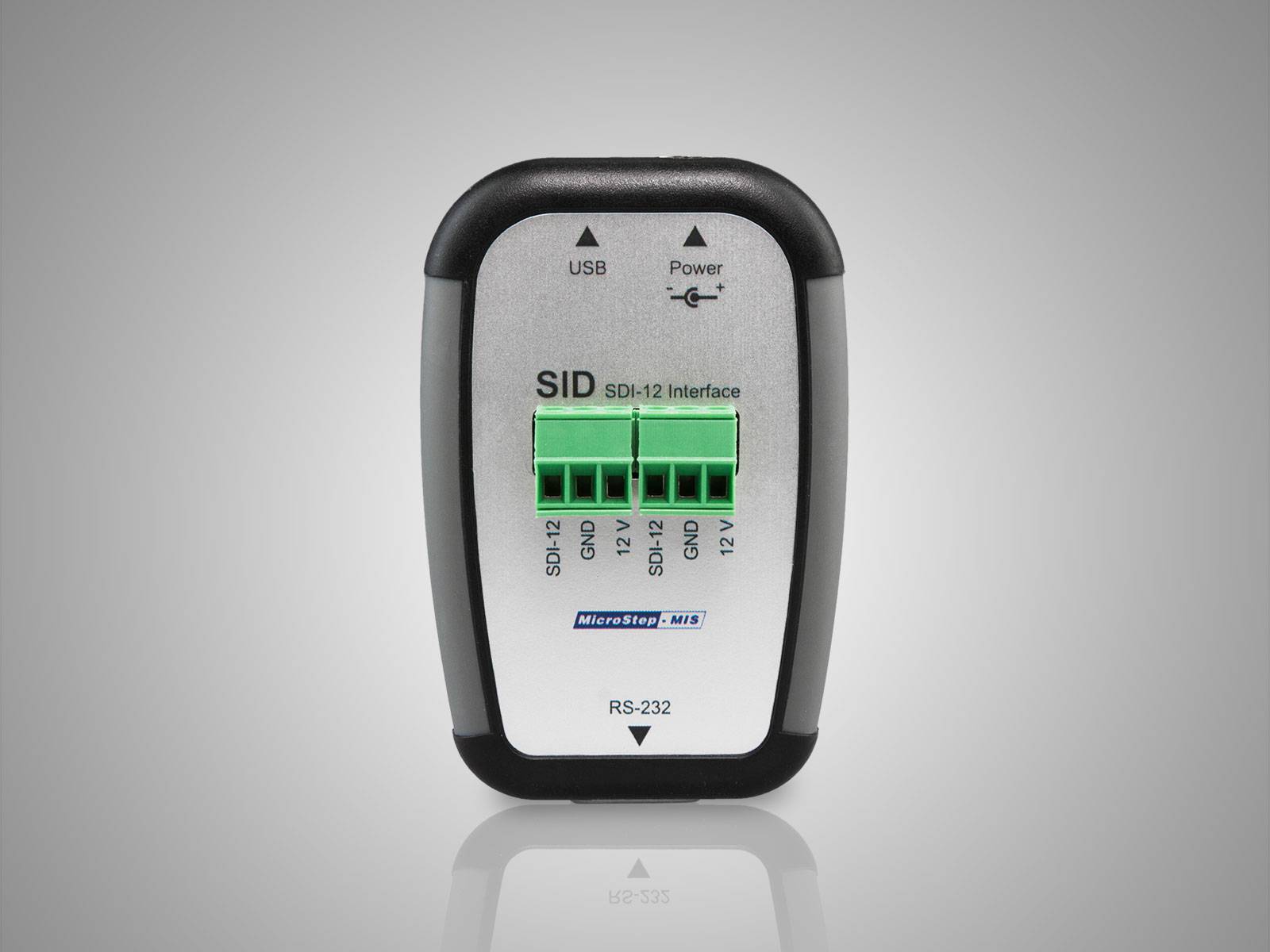

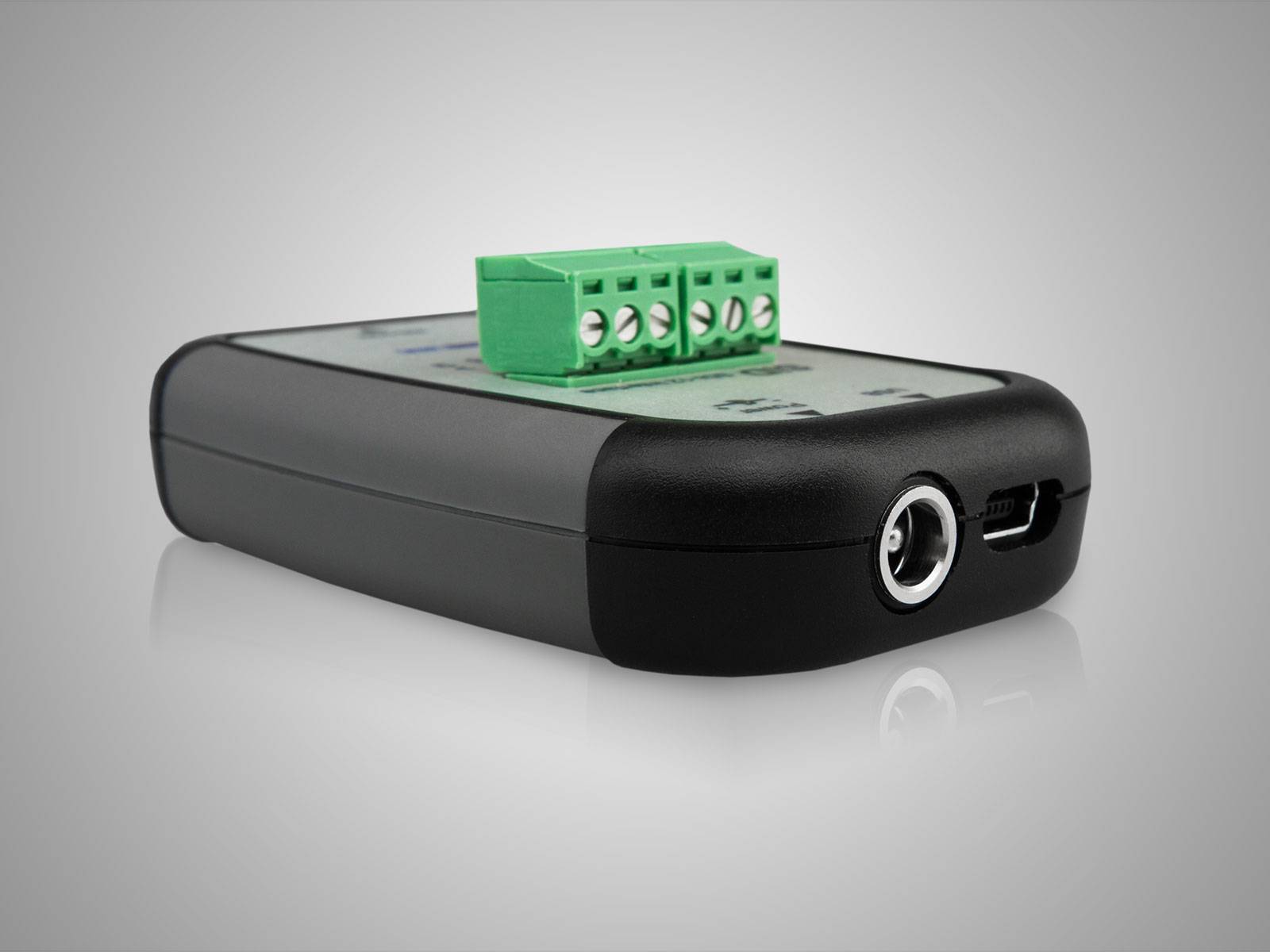

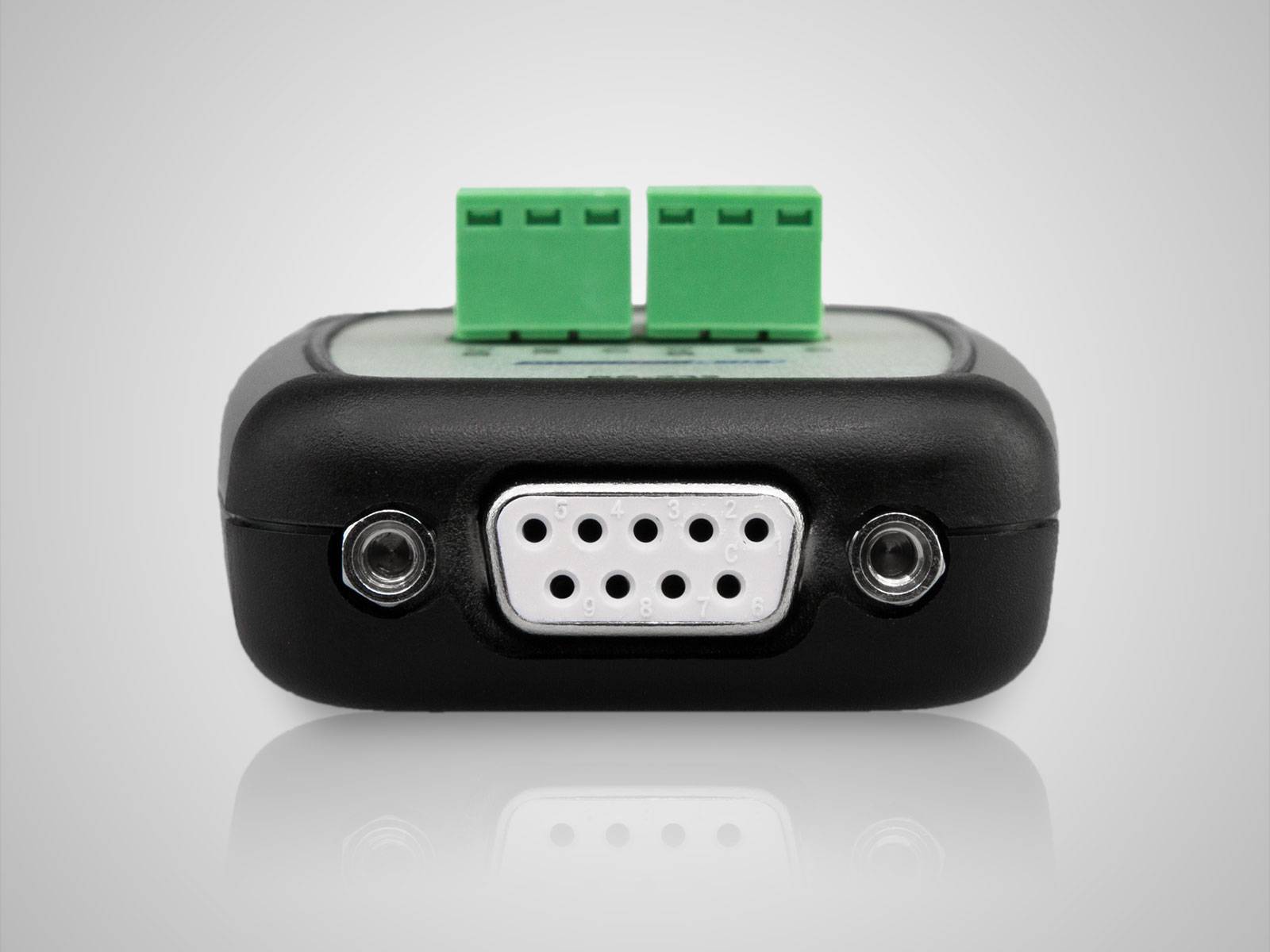

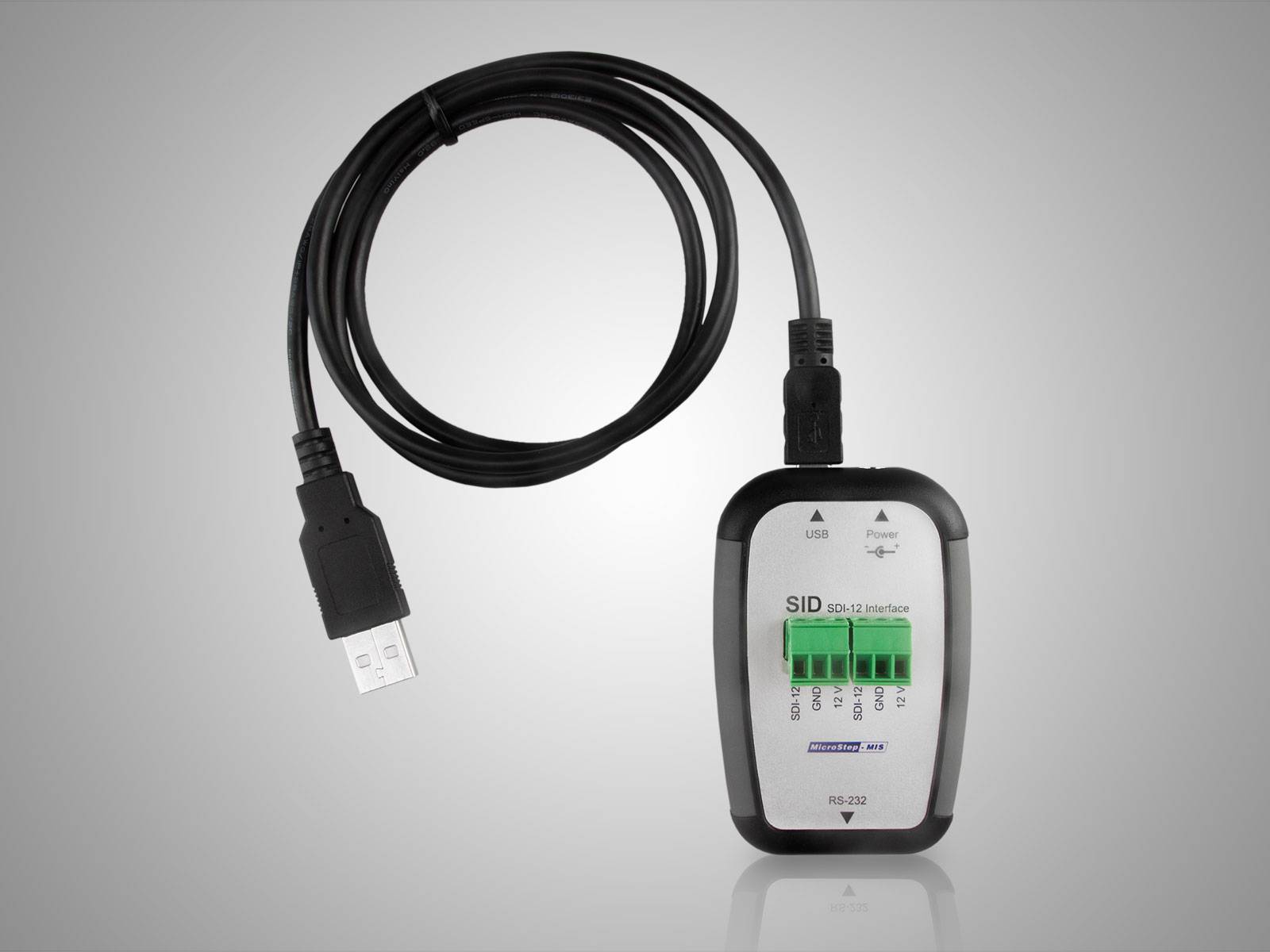

SID SDI-12 | Interface Dongle
Section 1
The SID is a handy device enabling the user to talk with any SDI-12 sensor simply using a PC and terminal program. SID is designed for use by AWS network maintainers and calibration laboratories. It has a very easy-to-use functionality.
SID acts as an SDI-12 data logger, which transmits commands to a sensor and collects its responses. It is designed to substitute complicated, big and expensive loggers by a small and simple device. It is ideal for testing sensor responses, setting address etc. After power-up, SID is ready to work. No settings are required. SID can supply the sensors by up to 2 A current at 12 V by connecting an external power supply.
